30KG Pressure, No Hollowing◇ Provide 3D camera with visual servo technology to ensure mortar level height and maintain wall pressure to prevent hollowing.
High Operational Efficiency, 3-Minute Per Plastering, Daily output of 300-350㎡◇ Daily output of 300-350㎡ (current record: 708㎡).
◇ Daily profits of RMB 1500-2000.
High Vertical Precision, Dual Guarantee with Self-Leveling System + Visual Positioning◇ Auto-leveling system ensures verticality deviation of ±0.015°, guaranteeing vertical accuracy on working surfaces.
◇ Visual precision positioning ensures splice joint accuracy of ±1mm, enabling smooth and natural transitions on wall surfaces.
◇ Vertical flatness meets high-precision wall standards, far exceeding conventional industry precision.
Superior Construction Quality, Smooth Surface Finish◇ Innovative trowel head design with built-in double-layer scrapers: a secondary scraping process will be applied after shaping and pressing to ensure a flat, visually consistent surface.
◇ Proven performance in over 4 million square meters of practical plastering applications.
◇ Participated in formulating multiple group standards for construction technology, leading the industry in construction quality excellence.
User-Friendly Operation, Easy to Master◇ Zero experience required; operators can master the system after 3–7 days of training.
◇ 2. One-touch start enables fully automated construction.
Stable Performance in Harsh Environments◇ AGV chassis equipped with 4 waterproof, mortar-resistant omnidirectional steering wheels, unaffected by ground mortar, water accumulation, or uneven terrain.
◇ IP66-rated motor protection.
◇ Rigorous pre-delivery testing (waterproofing, fatigue and durability) ensures reliable quality.
AI-Artisan System: Transforming Machinery into Construction Robots◇ Integrated "Hand, Foot, Eye" controller for seamless coordination.
◇ Smart perception and autonomous operation capabilities.

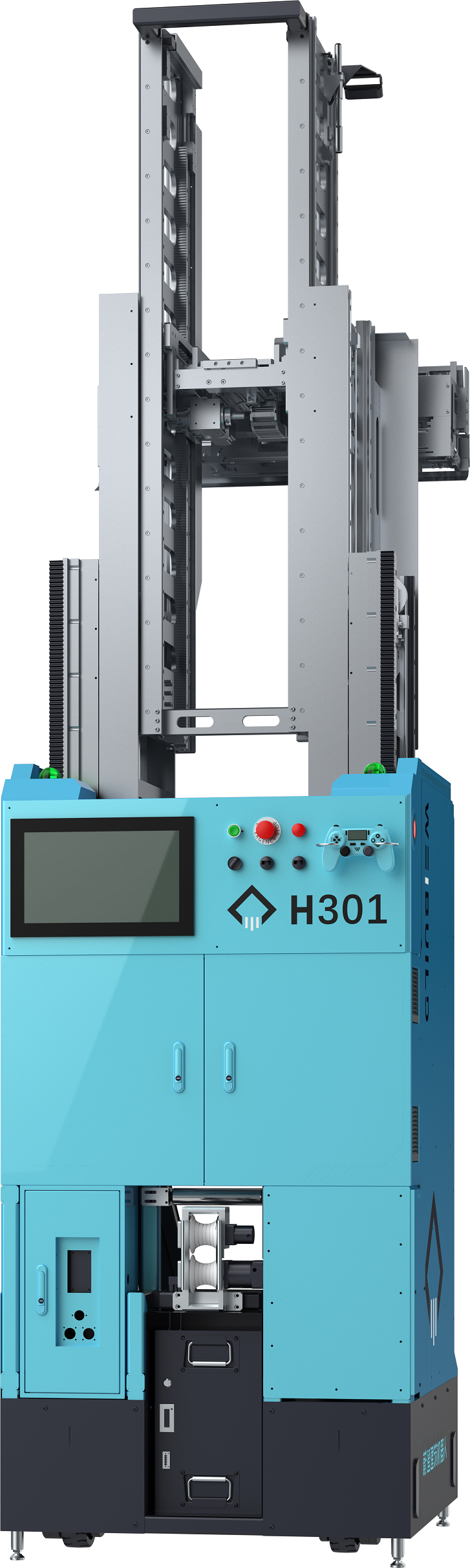

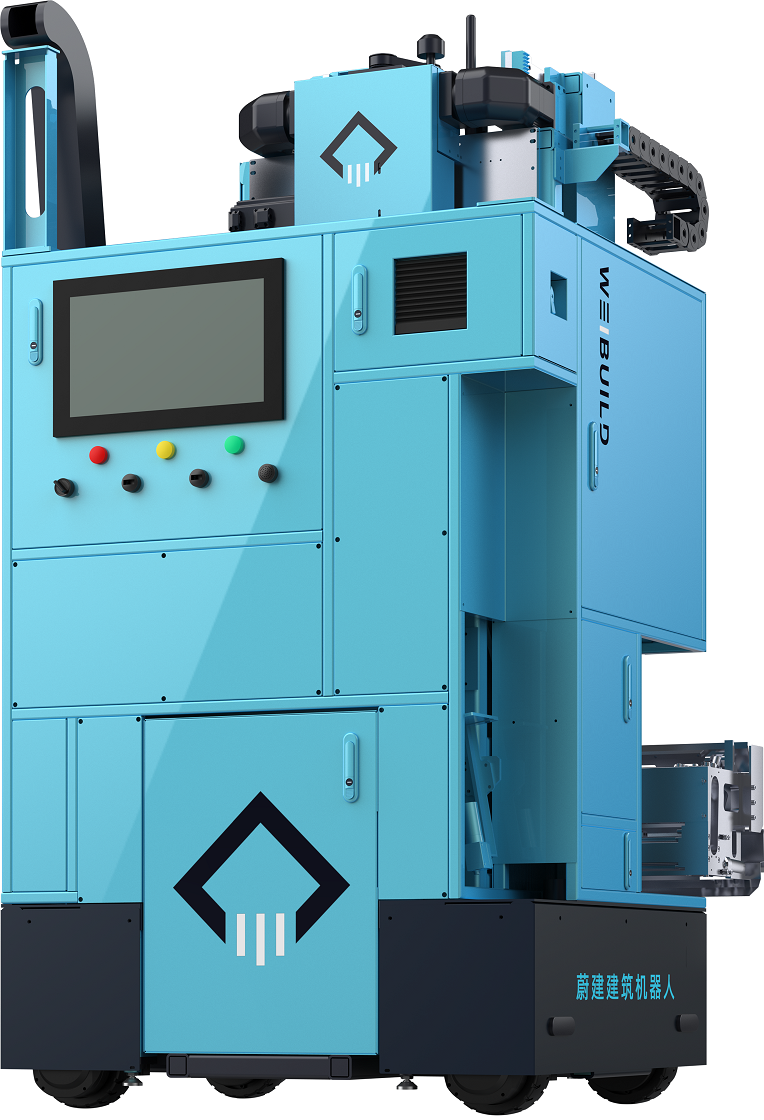

Weibuild Plastering Robot is an automated intelligent equipment designed to assist construction professionals in efficient plastering. Currently, there are two models of plastering robots: PMC-6000iE is suitable for public buildings work heights, and PMC-3000iE is suitable for residential buildings work heights.
Description
Weibuild Plastering Robot is loaded with the self-developed Weibuild AI Artisan control system, which can complete space perception, intelligent planning, autonomous walking, automatic plastering, closed-loop detection, and realise efficient operation and high-quality delivery. The plastering speed is 3 minutes/coat, with maximum efficiency of up to 700㎡/day, 5-10 times that of manual labour. The 30kg plastering pressure ensures no empty drums.
Benefits
Weibuild's exclusive artificial intelligence system (Al Artisan System), learning and decomposition of excellent skilled work, to achieve "experience digital construction standardisation, group evolution", so that construction skills continue to upgrade, efficiency continue to improve, and quality continue to improve.
Al Artisan system is equipped with high-precision mechanical operation equipment, so as to exceed the manual operation ability, "pumping, plastering, pressing, and closing" four major processes are completed in one step, to achieve "high vertical flat, no empty drums, increasing efficiency".
Al Artisan system of Weibuild robot includes environment perception, autonomous planning, automatic walking, automatic feeding, automatic plastering, and job self-test.
Applications
Applicable to the painting work of indoor walls in construction projects.
| Plastering Robot【PMC-3000iE】 | ||
|---|---|---|
| Features | Parameter | |
| Length | 900mm | |
| Width | 750mm | |
| Height | 1800mm | |
| Move Speed | 0.3m/s | |
| Plastering speed | 3min/plastering | |
| Flatness & Verticality can achieve | ±3mm/2m | |
| Applicable material | cement plaster | |
| Plaster specification | 3.3m |
| Plastering Robot【PMC-6000iC】 | ||
|---|---|---|
| Features | Parameter | |
| Length | 900mm | |
| Width | 1100mm | |
| Height | 1800mm | |
| Move Speed | 0.3m/s | |
| Plastering Speed | 3min/plastering | |
| Flatness & Verticality can achieve | ±3mm/2m | |
| Applicable material | cement plaster | |
| Plaster Specification | 5.4m |
